General Specifications

LOA - 18' 5''
LWL - 16' 8''
BEAM - 7' 4''
DRAFT, Board up - 6"
DRAFT, Board down - 4' 10"
DRAFT, Fixed Keel Version - 3' 6"
Displacement:
  »Centerboard Model - 590 lbs. (approx.)
  »Fixed Keel Model - 880 lbs. (approx.)
Ballast, Fixed Keel Version 375 lbs. (approx.)
Sail area - 181 sq. ft.
Mast height above DWL - 27' 3"
Designer: - Jim Taylor

Back to the P-185 page

Detail Specifications

Handicap Rating


  Portsmouth (centerbd) 90.6 DPN

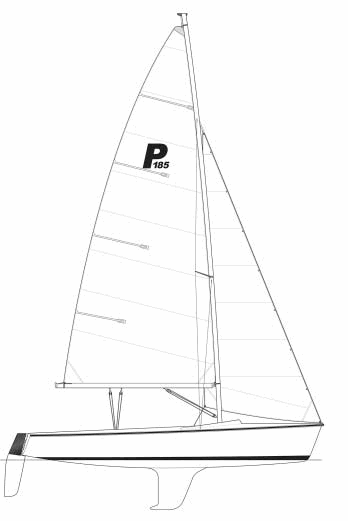

Sail Plan


I (Jib Height) 18.70 ft.
J (Jib Width) 6.10 ft.
E (Mainsail Width) 9.00 ft.
P (Mainsail Height) 21.50 ft.


Spinnaker


  Foot
12.10 ft.
  Luff 18.70 ft.
  Pole 6.72 ft.


Sail Area (approximate)


  Total 181 sq. ft.
  Main 116 sq. ft.
  Jib 65 sq. ft.
  Spin 204 sq. ft.


Battens 5/8 inch Wide Fiberglass


  1     ULLMAN 39.50 inch - KNIGHTON 39.75 inch
  2     ULLMAN 30.75 inch - KNIGHTON 31.00 inch
  3     ULLMAN 30.75 inch - KNIGHTON 31.00 inch
  4     ULLMAN 36.75 inch - KNIGHTON 28.75 inch

Cockpit Length


  at Seat Height 100 in.


Ice Chest


  IGLOO 36 qt.


Running Rigging

  DIA - Length
  Main Halyard 5/16 in. - 52 ft.
  Spare Halyard (Dealer Option) 5/16 in. - 41 ft.
  Main Sheet 5/16 in. - 32 ft.
  Jib Sheet (2) 1/4 in. - 26 ft..
  Cunningham

1/4 in. - 5 ft..

  Out Haul (Inside Boom) Wire/Rope
  Cntr Bd Line #1 (Spectra) 1/8 in. - 5 ft.
  Cntr Bd Line #2 (Dacron) 1/8 in. - 10 ft.
  Rudder Line 3/16 in. - 5.5 ft.
  Boom Vang 1/4 in. - 14 ft.
  Jib Furling Line (Low Strech) 5/32 in. - 18 ft.


Standing Rigging


  Uppers 1/8 in. 1 X 19  18 ft. 8.5 in.
  Lowers 1/8 in. 1 X 19  9 ft. 2.0 in.
  Headstay (wire luff on furling jig)
  Note: Shroud adjusters on uppers and lowers


Spars


  Mast 24 ft. 7 in.
  Boom 9 ft. 5 in.
  Spreaders 27 in. each
  Spinnaker Pole 6 ft. .72 in.


Trailer


  Weight 300 LBS
  Coupling Size 2 in. ball
  Wheel/Tire Size 5:70 X 8 - 4 lug
  Load Range C


Shipping Dimensions


P-185    Boat only Boat W/Cradle Boat W/Trailer
 Height     35 in. TBD 57 in.*
Width     88 in. 88 in. 88 in.
Length     222 in. 222 in. 286 in.
Weight     590 lbs. TBD. 990 lbs.

P-185/w Keel   Boat only Boat W/Cradle W/Trailer
Height     35in. TBD 78 in.*
Width     88 in. 88 in. 88 in.
Length     222 in. 222 in. 270 in.**
Weight     880 lbs. TBD 1270 lbs.

  *NOTE: W/ trailer winch stand removed.
  *NOTE: W/ trailer tougue length included.

    2/2013
